Design Philosophy

Like designing a book’s table of contents, we design APIs through WKSDK.shared.xxxManager to access all needed functionality, for example sending messages [WKSDK.shared.chatManager sendMessage:xxx]

Architecture Overview

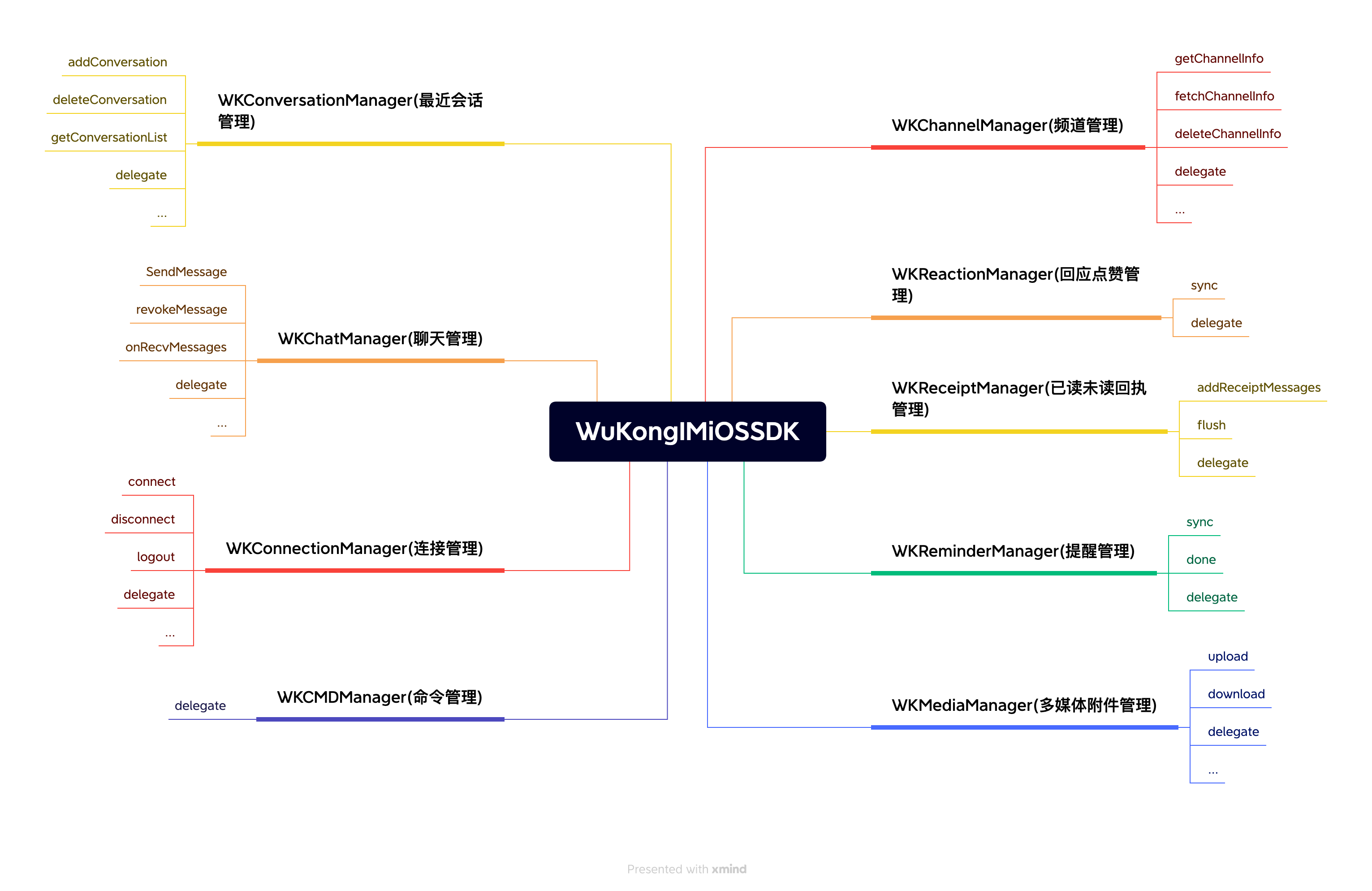

SDK Architecture
// Chat Manager
// Responsible for message-related CRUD operations like sending messages, deleting messages,
// recalling messages, listening to chat messages, etc.
WKSDK.shared.chatManager

// Connection Manager
// Responsible for establishing or disconnecting connections with IM,
// monitoring IM connection status, etc.
WKSDK.shared.connectionManager

// Channel Manager
// Responsible for channel data retrieval, caching and channel settings
// like pinning, do not disturb, muting, etc.
WKSDK.shared.channelManager

// Conversation Manager
// Responsible for maintaining recent conversation data like unread counts,
// drafts, @mentions, last messages, etc.
WKSDK.shared.conversationManager

// Reaction Manager
// Responsible for maintaining like/reaction data
WKSDK.shared.reactionManager

// CMD Manager
// Responsible for listening to command-type messages sent from the server
WKSDK.shared.cmdManager

// Receipt Manager
// Responsible for maintaining read/unread status of messages
WKSDK.shared.receiptManager

// Reminder Manager
// Responsible for reminder items in recent conversations like @mentions,
// group join requests, etc. Also supports custom reminders like WeChat's
// [Red Packet] [Transfer] list reminders
WKSDK.shared.reminderManager

// Media Manager
// Responsible for uploading and downloading multimedia files in messages
// like images, videos, and other messages with attachments
WKSDK.shared.mediaManager

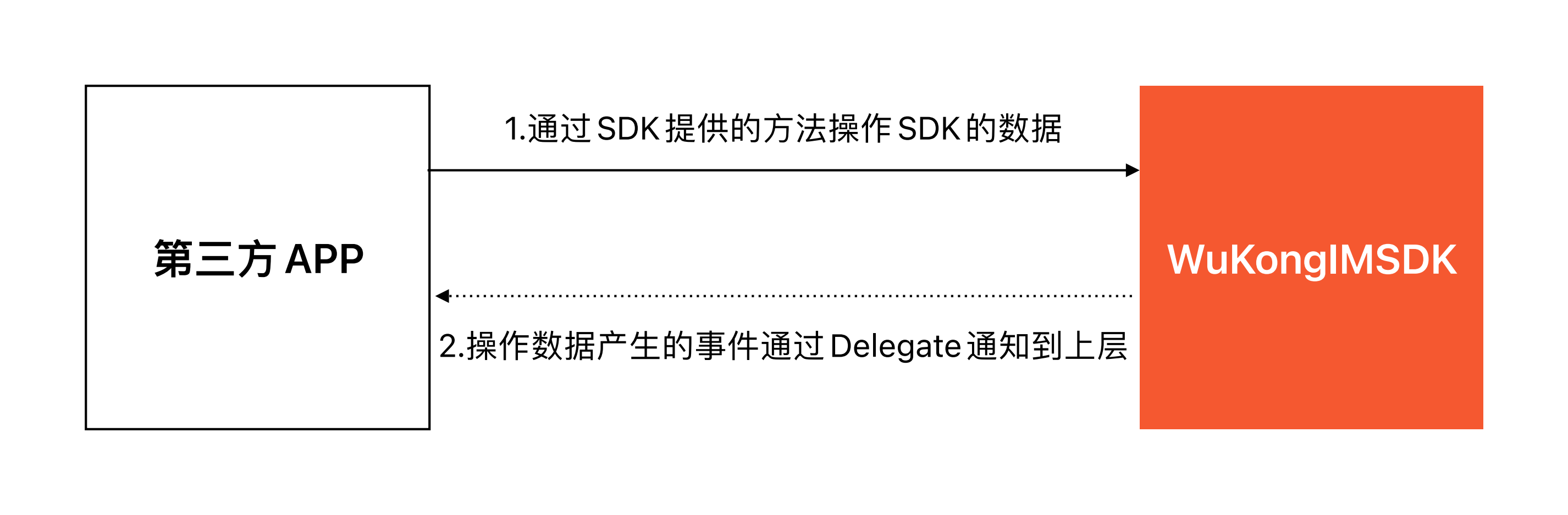

SDK Integration with Existing Apps

SDK Integration with Existing Apps The overall flow of SDK integration with existing apps is: Existing APP calls SDK methods → Data changes occur → Notify existing APP through delegate callbacks For example, common message sending → Message status changes → Notify existing APP to update UI send status indicators
// Send message through chatManager
[WKSDK.shared.chatManager sendMessage:xxx]

// Listen to message status changes through chatManager's delegate
-(void) onMessageUpdate:(WKMessage*) message  {
    if(message.status == SUCCESS) {
      [self updateItemUIWithSuccess:message];
    }else {
       [self updateItemUIWithFail:message];
    }
}

Core Functionality Modules

Chat Management (ChatManager)

  • Message sending, receiving, deletion
  • Message recall and editing
  • Message status monitoring
  • Historical message queries

Connection Management (ConnectionManager)

  • IM connection establishment and disconnection
  • Connection status monitoring
  • Network status handling
  • Automatic reconnection mechanism

Channel Management (ChannelManager)

  • Channel information retrieval and caching
  • Channel settings (pinning, do not disturb, muting)
  • Channel member management
  • Channel status synchronization

Conversation Management (ConversationManager)

  • Recent conversation list maintenance
  • Unread message counting
  • Conversation draft management
  • @mention reminders

Media Management (MediaManager)

  • Image, video, audio upload and download
  • File transfer progress monitoring
  • Media file cache management
  • Thumbnail generation

Development Advantages

  • Unified Entry Point: Access all functionality through WKSDK.shared
  • Modular Design: Clear separation of functional modules for easy maintenance
  • Event-Driven: Event callbacks based on delegate pattern
  • High Performance: Local database caching reduces network requests
  • Easy Integration: Clean API design for quick integration into existing projects

Next Steps

After understanding the overall architecture of iOS SDK, you can:
  1. SDK Integration - Start integrating WuKongIM iOS SDK
  2. Connection Management - Learn how to establish and manage connections
  3. Chat Management - Implement message sending and receiving functionality
  4. Channel Management - Manage channels and members
  5. Conversation Management - Handle conversation lists and unread messages
