Design Philosophy

To enable developers to use the SDK faster and more conveniently, WuKong SDK provides a single entry point to access all functionality in the SDK. Like a book’s table of contents, you can find corresponding content through the directory. For example, connecting to IM: WKIM.getInstance().getConnectionManager().connection()

​
Architecture Overview

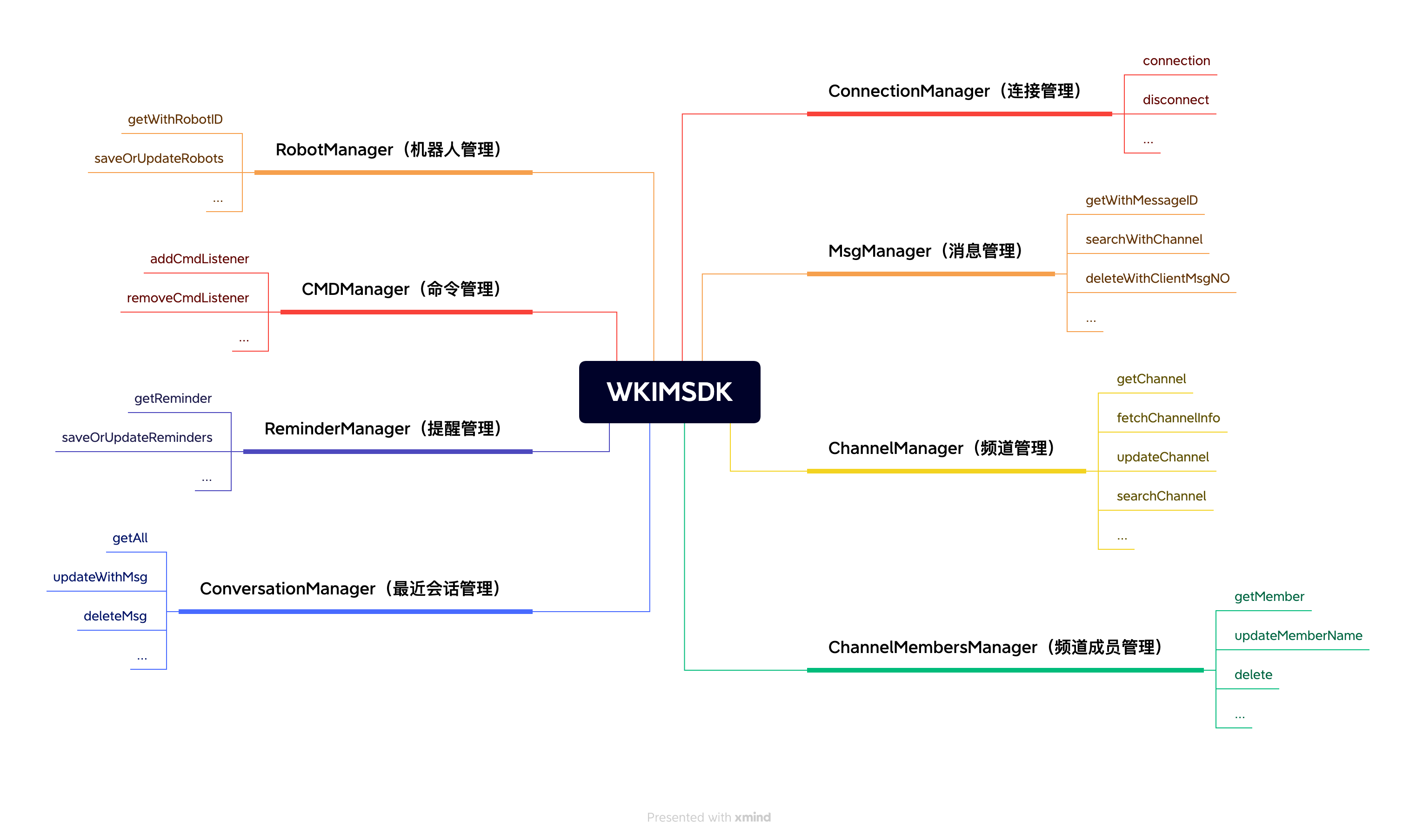

SDK Architecture Common SDK functionality introduction:
// Message Manager
// Responsible for message CRUD operations, new message listening, refresh message listening,
// message storage, send message receipt listening, monitoring sync of specific chat data, etc.
WKIM.getInstance().getMsgManager()

// Connection Manager
// Responsible for IM connection, disconnection, logout, connection status monitoring,
// connection IP monitoring, etc.
WKIM.getInstance().getConnectionManager()

// Channel Manager
// Can get Channel information, refresh Channel cache, monitor Channel changes
// [pinning, do not disturb, muting], search Channels, etc.
WKIM.getInstance().getChannelManager()

// Conversation Manager
// Get recent chat records, refresh recent conversations [add chat, red dot changes],
// monitor removal of conversations, monitor sync recent conversations, etc.
WKIM.getInstance().getConversationManager()

// Channel Members Manager
// Get Channel member list, set member notes, save and modify member data,
// monitor refresh members and remove members, etc.
WKIM.getInstance().getChannelMembersManager()

// Reminder Manager
// Get conversation reminders like: [someone @me] [group join request], etc.
// Also supports custom reminder items like voice unread, etc.
WKIM.getInstance().getReminderManager()

// CMD Manager
// Responsible for monitoring command messages sent from the server
WKIM.getInstance().getCMDManager()

// Robot Manager
// Can get robot menus, sync robot menus, query menus, etc.
WKIM.getInstance().getRobotManager()

​
SDK Integration with Apps

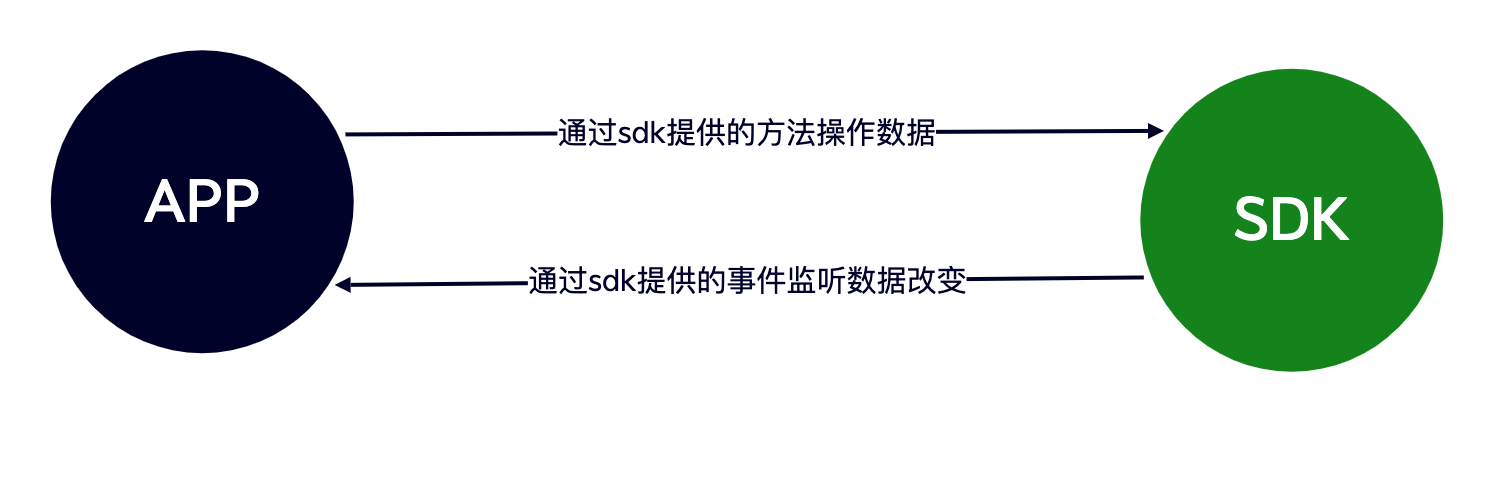

SDK Integration with Apps The SDK-APP interaction flow is: APP calls SDK provided methods, SDK processes data and callbacks data to APP through events. For example, message sending flow: APP calls send message method, SDK pushes the stored message to APP.

​
Core Functionality Modules

​
Message Management (MsgManager)

  • Message CRUD operations
  • New message listening and refresh message listening
  • Message storage and status management
  • Send message receipt listening
  • Sync chat data monitoring

​
Connection Management (ConnectionManager)

  • IM connection establishment and disconnection
  • Logout handling
  • Connection status monitoring
  • Connection IP monitoring
  • Network status handling

​
Channel Management (ChannelManager)

  • Get channel information
  • Refresh channel cache
  • Monitor channel changes (pinning, do not disturb, muting)
  • Search channel functionality
  • Channel settings management

​
Conversation Management (ConversationManager)

  • Get recent chat records
  • Refresh recent conversations (add chat, red dot changes)
  • Monitor removal of conversations
  • Monitor sync recent conversations
  • Unread message counting

​
Channel Members Management (ChannelMembersManager)

  • Get channel member list
  • Set member notes
  • Save and modify member data
  • Monitor refresh members and remove members
  • Member permission management

​
Reminder Management (ReminderManager)

  • Get conversation reminders (someone @me, group join request, etc.)
  • Custom reminder items (voice unread, etc.)
  • Reminder status management
  • Reminder message handling

​
CMD Management (CMDManager)

  • Monitor command messages sent from server
  • Command message handling
  • System notification management

​
Robot Management (RobotManager)

  • Get robot menus
  • Sync robot menus
  • Query menu functionality
  • Robot interaction handling

​
Development Advantages

  • Unified Entry Point: Access all functionality through WKIM.getInstance()
  • Modular Design: Clear separation of functional modules for easy maintenance and extension
  • Event-Driven: Event callback mechanism based on listener pattern
  • High Performance: Local database caching, optimized network requests
  • Easy Integration: Clean API design for quick integration into existing Android projects
  • Complete Functionality: Covers all core instant messaging features

​
Next Steps

After understanding the overall architecture of Android SDK, you can:
  1. SDK Integration - Start integrating WuKongIM Android SDK
  2. Basic Features - Learn basic SDK configuration and usage
  3. Message Management - Implement message sending and receiving functionality
  4. Channel Management - Manage channels and members
  5. Conversation Management - Handle conversation lists and unread messages
